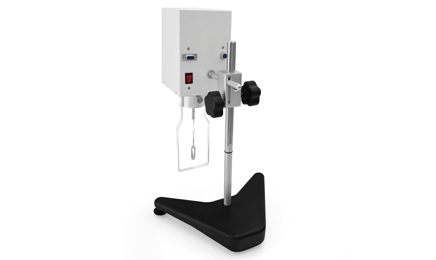

RVT-40M-F300 high-temperature viscometer has the characteristics of high measurement sensitivity, reliable test results, easy operation, and elegant appearance. It is a precision instrument used to measure the absolute viscosity of Newtonian liquids and the apparent relative viscosity of non-Newtonian liquids. It can be widely used in hot melt adhesives, asphalt, paraffin, high polymers, and other products.
Product Introduction
RVT-40M-F300 high-temperature viscometer is an upgraded product of our company's digital viscometer.
High-temperature viscometer adopts more advanced mechanical design technology, manufacturing process, and microcomputer control technology, with accurate data acquisition and a high-resolution TFT display screen for clear data display and more comprehensive functions.
High-temperature viscometer features high measurement sensitivity, reliable test results, easy operation, and an elegant appearance. It is a precision instrument used to measure the absolute viscosity of Newtonian fluids and the apparent relative viscosity of non-Newtonian fluids. It can be widely used in hot melt adhesives, asphalt, paraffin, high polymers, and other products.


Torque Description:
RVT series: widely applicable to hot melt adhesive, asphalt, paraffin, high polymer, and other products.


Product Features
High-temperature viscometer has the characteristics of high measurement sensitivity, reliable test results, easy operation, and elegant appearance. It is a precision instrument used to measure the absolute viscosity of Newtonian liquids and the apparent relative viscosity of non-Newtonian liquids. It can be widely used in products such as oils, paints, plastics, medicines, foods, coatings, adhesives, viscometers, resins, and chemical raw materials.
High-temperature viscometer is a high-temperature digital viscometer. The motor drives the rotor to rotate at a constant speed through a variable speed belt. When the rotor rotates in the liquid, the liquid will produce a viscosity torque acting on the rotor. The greater the viscosity of the liquid, the greater the viscous torque; conversely, the smaller the viscosity of the liquid, the smaller the viscous torque. The viscous torque acting on the rotor is detected by a sensor, and the viscosity of the tested liquid is calculated after being processed by a computer.
It is equipped with 4 types of rotors (R21, R27, R28, R29) and two variable speed modes: infinitely variable speed and fixed speed. The fixed speed mode has 10 speed levels (0.5, 1, 2, 2.5, 4, 5, 10, 20, 50, 100 rpm), which form 40 combinations that can measure the viscosity values of various liquids within the measurement range. It is also equipped with a temperature measurement device, which can directly display the temperature on the screen, allowing the observation of the viscosity change caused by temperature variation.


Technical Specifications
Model: RVT-40M-F300
Measurement Range: 10~320,000,000 cP
Temperature Display: Available
High Temperature Furnace Heating Temperature: Ambient temperature to 300℃
Viscosity-Temperature Curve: Viscosity-temperature time curve can be output
Rotor Specifications: R21-R29 rotors
Rotor Speed: 0.1-200 rpm infinitely variable speed
Automatic Mode: Can automatically select appropriate rotor number and speed
Operating Interface Selection: Chinese/English
Shear Force Display: Available
Shear Rate Display: Available (only for small adapter and rotor No.0)
Communication/Printing: Computer interface can be connected to LAWSONSQ software and printer for output
Timed Measurement Function: Can set the time to reach a specified torque, stop time (or directly measure based on the last saved parameters)
Measurement Accuracy: ±1% (Newtonian fluid)
Repeatability: Full scale ±0.2%
Displayed Information: Viscosity (cP or mPa·s)
Temperature (°C) (temperature probe included)
Rotor Speed (RPM)
Time
Used Rotor
Working Environment: Temperature 5℃~35℃, relative humidity no more than 80%
Dimensions: 370*325*280mm
Power Supply: AC 220V±10% 50Hz±10%
Net Weight: 9.2kg
Product List
RVT-40M-F300 Unit
Host Machine Unit
Rotor 21-29 set
Temperature control device piece

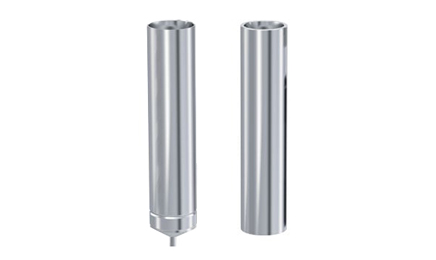

High temperature heating furnace unit
Temperature sensor piece
Base unit
Protective cover unit
Lifting column set
A pair of pliers (one large and one small) set
Hexagonal socket head piece
Power adapter set
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
1
1
2
1
1
1
2
1
1
1
1
1
