• Sonics ultrasonic disperser
  • VCX1500
  • 1500W power, standard swing arm processing capacity of 20L.
  • VCX1500
  • Sonics ultrasonic disperser
  • 1500W power, standard swing arm processing capacity of 20L.

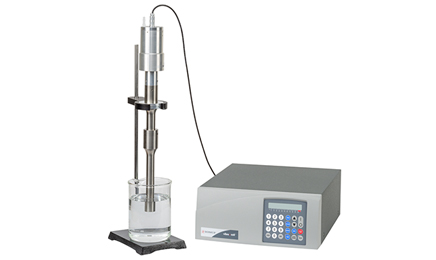

SONICS VCX1500 ultrasonic disperser is a 1500W ultrasonic processor and equipment that can batch install up to 20 liters of organic and inorganic materials. Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing, and large-scale dispersion systems).
Product Introduction
SONICS VCX1500 Sonics ultrasonic disperser is a 1500W ultrasonic processor and equipment that can batch install up to 20 liters of organic and inorganic materials. Typical applications include industrial mixing (including large-scale processing of nanomaterials) and industrial processing (including emulsification, degassing, and large-scale dispersion systems).


Product Features
◆Batch processing of up to 20 liters
◆Energy and temperature set-point control
◆Automatic tuning

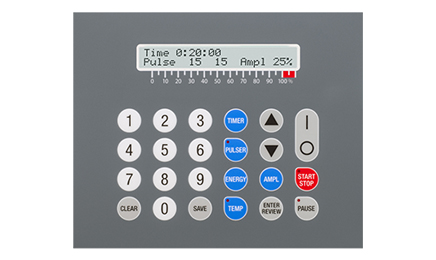

◆Digital metering
◆Full-featured process timer
◆Remote processing capability


Technical Parameters
Model: VCX 1500
Frequency: 20KHz
Power: 1500W
Standard Swing Arm: Φ25mm
Standard Swing Arm Length: 230mm
Standard Swing Arm Processing Capacity: 20L
Swing Arm Overall Dimensions: 178 x 380 x 463.5 mm
Swing Arm Material: Ti-6Al-4V Titanium Alloy
Optional Swing Arm: Φ25mm
Swing Arm Weight: 1600g
Swing Arm Cable Length: 3m
Duty Cycle: 1-99%
Power Adjustment Range: Continuously adjustable (15-1500w)
Time Interval: 0.1-99.9s
Temperature Protection Setting: Available
Power Amplitude Display: Available
Operating Mode: Pulse/Continuous
Power Supply: 220/110V 50Hz/60Hz or Unless otherwise specified, the power requirements shall be sent at 117V, 50/60Hz.
Net Weight: 9.5kg
Main Unit + Transducer Weight: 10.18kg
Product List
VCX1500 Unit
Host Machine Unit
Toolbox set
Support Bracket Set
Temperature sensor piece
User manual copy
Description
1
1
Optional
Optional
1
