• Ultrasonic cell homogenizer
  • DH98-IIIE
  • 1000W power, crushing capacity of 0.5-700ml
  • DH98-IIIE
  • Ultrasonic cell homogenizer
  • 1000W power, crushing capacity of 0.5-700ml

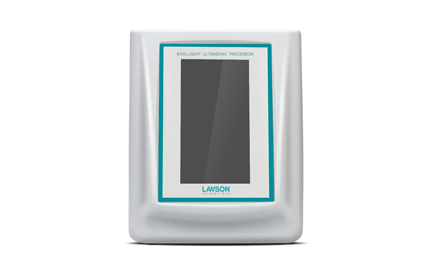

Ultrasonic cell homogenizer DH98-IIIE, is a versatile and multi-purpose instrument that utilizes strong ultrasound to generate cavitation effects in liquids for ultrasonic processing of substances. It can be used for crushing various animal and plant cells, virus cells, as well as emulsifying, separating, homogenizing, extracting, defoaming, cleaning, and accelerating chemical reactions, among others.
Product Introduction
Ultrasonic cell homogenizer DH98-IIIE, is a versatile and multi-purpose instrument that utilizes strong ultrasound to generate cavitation effects in liquids for ultrasonic processing of substances. It can be used for crushing various animal and plant cells, virus cells, as well as emulsifying, separating, homogenizing, extracting, defoaming, cleaning, and accelerating chemical reactions, among others.


Product Features
◆7-inch large screen display for more intuitive parameter display and more convenient touch operation
◆Display of simulated data waveform of ultrasonic power and time width
◆Rich functions: cell crushing, homogenization, separation, extraction, defoaming, cleaning and acceleration of chemical reactions
◆Alarm function: time, overload, no-load, and over-temperature
◆Customizable settings for ultrasonic time, interval time, total time, and power ratio
◆Easy operation: centrally controlled by microcomputer for optimized user experience
◆Low noise: equipped with soundproof box to reduce noise disturbance
◆Long operation time: supports continuous operation for more than 1 hour


Experimental Objectives
1. Understand the basic principles of ultrasonic cell crushing.
2. Master the basic techniques of ultrasonic cell crushing.


Experimental Principle
When strong sound waves act on a solution, the cavitation phenomenon of bubble formation, growth, and rupture is caused. The shock waves and shear forces caused by cavitation lead to the lysis of cells.


Materials and Reagents
10ml bacterial culture, beaker, ice shaver, 75% alcohol cotton ball.


Technical Parameters
Model: DH98-IIIE
Frequency: 20-25KHz (automatic tracking)
Power: 950W
Random amplitude bar: Φ6
Optional amplitude bar: Φ2, 3, 10, 15
Crushing capacity: 0.5-700ml
Duty ratio: 1-99%
Screen size: 7 inch
Screen material: HD TFT touch screen
Single ultrasound time: 0.1-99.9s
Single interval time: 0.1-99.9s
Total time: 1-99H59M59S
Temperature control function*: Yes (automatically pause ultrasound when preset temperature is reached)
Technical Parameters
Model: DH98-IIIE
Frequency: 20-25KHz (automatic tracking)
Power: 950W
Random Amplitude Rod: Φ6
Optional Amplitude Rod: Φ2, 3, 10, 15
Crushing Capacity: 0.5-700ml
Duty Ratio: 1-99%
Screen Size: 7 inches
Screen Material: High-definition TFT touch screen
Single Ultrasonic Time: 0.1-99.9s
Single Interval Time: 0.1-99.9s
Total Time: 1-99H59M59S
Temperature Control Function*: Yes (automatic pause of ultrasound when reaching preset temperature)
Optional Functions: Computer communication + remote control + user password protection + data printing + automatic lifting sound insulation box + lighting or sterilization
Data Storage: 20 sets
Power Supply: 220/110V 50Hz/60Hz
Power Supply Housing Size: 410*225*290mm
Sound Insulation Box Size: 470*305*430mm
Net Weight: 15.1kg
Main Engine + Transducer Weight: 17kg
Outer Packaging Size: 534×295×435mm


Probe Model Selection
Model Broken Cell Capacity
Φ2mm 150ul-5ml
Φ3mm 200ul-10ml
Φ6mm 10ml-200ml
Φ10mm 50ml-500ml
Φ12mm 50ml-700ml
Product List
DH98-IIIE Unit
Host Machine Unit
Vibration System (Transducer Assembly) Set
Soundproof box set
Cross clamp (inside the soundproof box) piece
Test tube clamp (inside the soundproof box) piece
Special Wrench (used for disassembling the amplitu Set
Fuses piece
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
1
1
1
1
8A, 5A each 2
1
1
1
1
